Melting

300 KW ELECTROTHERM Make Induction Furnace with 300 KG crucible, Newly installed.

300 Kg Ladle with lid & Temperature Measuring Instrument up to 1600 degrees centigrade.

Moulding

Simultaneous Jolt Squeeze Molding Machines installed in March 2012 - ARPA 300 ( Box Size -16" x 16" x 6" & 20" x 20" x 6" )

SAND PLANT

Automatic Sand plant - Air compressor, Sand Handling system includes molding line feed, pallets, knockout machine, sand conveyor belt, surge hopper etc.

Sand Testing Equipments

Green compression strength testing machine

Moister tester

Permeability meter

Compactibility meter

Sieve Analyser

Mould hardness tester

Core Tester

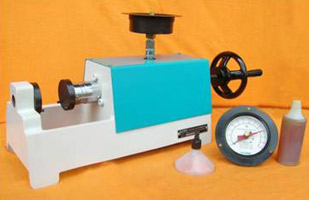

Universal Strength

Sand Rammer

Permiability

Sand siever

Electric Permiability

Shell Tensile tester.

Core Making

Cold Box core shooter available in House

Shell core shooter capacity 10 Kg core

compactability
flowability
mold-hardness-tester
sand-rammer
microscope-with-analyzer
moisture-tester
sand-siever
electric-permiability
shell-sand-tester
core-tester
universal-strength

METALLURGICAL LABORATORY TESTING

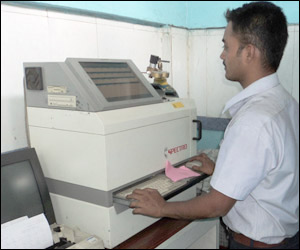

Specrto Meter Make - Spectro Max

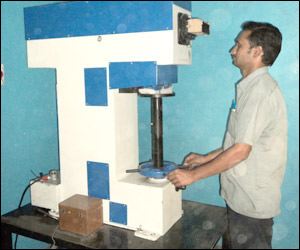

Harness testing Machine - Hydraulic operated

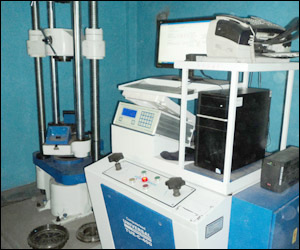

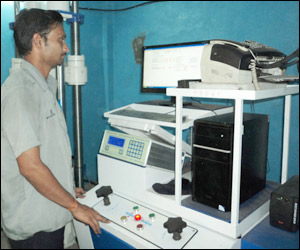

Physical properties - UTM, YS, % Elongation etc.)

Microscope with Image analyser

Polishing machine

C. E. Meter - Carbon equivalent, Percentage of carbon & Silicon, Residual magnesium percentage, Nodularity, Nodule count of the metal & presence of carbides if any in the metal

Out sourcing facilities near by available

Ultrasonic & Rediography testing facilities are available.

CASTING CLEANING

300 Kg capacity Shot Blasting Machine to clean the castings

16" Wheel- Pedestal grinding Machines

16" Wheel Swing frame grinding Machine

4" & 7" Wheel Angular Grinders

Pneumatic Chipper and Grinders

Machinery Facility

CNC, VMC and HMC Machining facility available with dedicated Machine shops

Infrastructure

Induction Furnace : 250 KW / 300 Kg.

Molding Machines -Simultaneous Jolt Squeeze : ARPA 200

Cold box & Shell core machine : 10 kg Capacity

Sand Plant, Mold Handling & Metal Handling System

Shot Blasting Machine

Machine Shop : CNC Machine

🔺
